All that you need

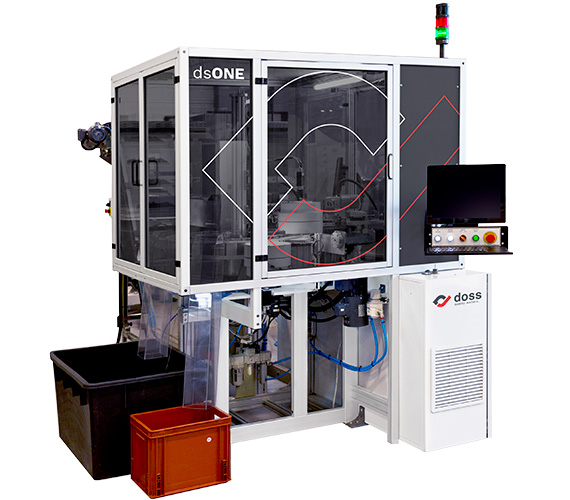

DS ONE meets all inspection needs thanks to the many types of stations available, while maintaining a compact design.
Single-table automatic sorting machine for inspecting both sides of parts. This solution allows for optical inspection of parts through transparent glass and therefore without the need to flip them mechanically.
The system, with a simple and compact structure, is equipped with high-resolution cameras and a high-performance loading system capable of handling items of different sizes and materials. DS ONE is also equipped with a Smart Software that allows for the fully automatic adjustment of parameters and images.
Parts are loaded into the machine by the loading systems.
Parts pass throught various units (superficial, peripheral or laser station) by rotating table, or belts, or pick & place system.
Software inspects the images of the parts taken by the inspection units.
If defect are detected parts will be rejected.
If partes pass all controlled parameters, they will be collected in ‘good’ bin or packing system.
|Type of Parts||Elastomers, rigid materials|
|Color||All, not transparent|
|Parts Inspected||O-rings, technical parts|
|Characteristics||Clean, free of dust that could alter the part’s surface|
|Size||Various ranges available between 5 – 80 mm OD|
|Chord/Height||0.8 – 15 mm |
0.8 – 20 mm (customized settings)
|Resolution||Depends on the configuration|
|Type of Camera||Matrix|
|Framed Field||From 20 to 60 mm|
|Camera Resolution||5 MP|
|Speed||Up to 10 pts/s|
|Type of Machine||Single-table|
|Noise Level||< 75 ㏈|
|Three-Phase Power Supply||230 – 480 v|
|Maximum Installed Power||4 Kw|
|Average Consumption||1.2 Kw|
|Compressed Air Consumption||400 NL/Min|
DS ONE offers the option of mounting all types of optic lenses, up to a maximum of 5 station.
Offers the option of being configured with 3 exits for defective parts.
The single-table system makes it possible to perform surface analysis of parts that are not designed to be flipped.
Designed to be small and compact.
Thanks to a framed field ranging from 20 to 60 mm it is possible to inspect components of various sizes.
One can choose from various feed and packaging systems, available as optional features.
